Velleman K8055 library for BeOS beta 1 |
The Velleman
USB Experiment Interface Board K8055 is a small USB board with several I/O
ports for electronics hobbyists. It provides 5 digital inputs, 8 digital
outputs, 2 analog inputs, 2 analog/PWM outputs (each with 8 bit resolution), and
two hardware counters bound to the two first digital inputs with customizable
debounce times.
This package contains a library to interface your BeOS/ZETA application with
this board and a demo application, with full source code released under the MIT
license. No driver installation is required, it uses the BeOS USB Kit.
The library is very simple and implements all the functions explained in the
Velleman’s developers guide for the original Windows DLL. It would be nice to
have something better - i.e., object oriented classes, multithreading-multiboard
support, notify on input changes, and such - but this will be for another
version. If you want, take a look at the code and improve it!
This program is not approved, supported, or endorsed by Velleman.
Download (180 KiB zip)
Quick facts
| License type | MIT |
| Language | English |
| Version | beta 1 |
| Requirements | BeOS 5 or ZETA 1.2 |
| Source code | Included |
| Download size | 180 KiB |
| Download type | ZIP file |
Screenshots
|

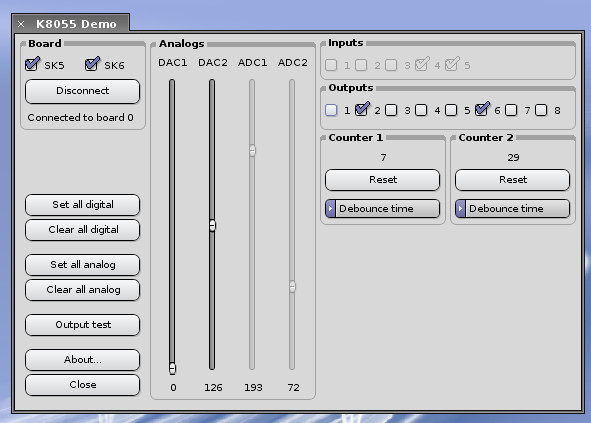

Demo application jpg 591x423, 46 KiB |
